Footnotes

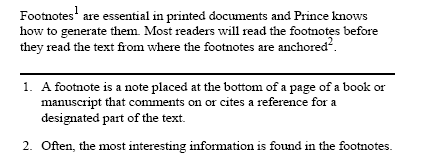

Footnotes example

Prince supports footnotes using the float property. If an element has the property float: footnote then it will be floated into the footnote area of the page and a reference will be placed in the text.

This example shows some simple footnotes, the fn class is used to create footnotes:

<style>
.fn {
    float: footnote
}
</style>

...

<p>
Footnotes<span class="fn">A footnote is a note placed at
the bottom of a page of a book or manuscript that comments on or
cites a reference for a designated part of the text.</span>
are essential in printed documents and Prince knows how to generate
them. Most readers will read the footnotes before they read the text
from where the footnotes are anchored<span class="fn">Often,
the most interesting information is found in the footnotes.</span>.
</p>

Each footnote implicitly increments the footnote counter which is used to number the footnotes. The footnote counter can be reset at each new page, section or chapter as necessary. This example resets the counter on each new page.

@page {
    counter-reset: footnote
}

Footnote calls

Footnote calls are the numeric anchors in the text that refer to the footnotes. Prince will generate footnote calls using the ::footnote-call pseudo-element. This is the default style for footnote calls:

*::footnote-call {
    content: counter(footnote);
    font-size: 83%;
    vertical-align: super;
    line-height: none
}

This will display the current value of the footnote counter in a superscript position in a slightly smaller font than the main text. The line-height declaration ensures that the superscript position of the footnote does not affect the line height of the main text.

The footnote call style can be customised to use different fonts or colors. It can even be customised to include different content, such as placing the footnote counter in brackets rather than making it superscript.

*::footnote-call {
    content: "[" counter(footnote) "]";
    font-size: inherit;
    vertical-align: inherit;
}

This rule will generate footnote calls with the number of the footnote in brackets, like this: [1], [2], [3].

Footnote markers

Prince automatically generates footnote markers, the numeric markers placed in front of the footnote text. Footnote markers are similar to the markers added to list items (see Lists) in most respects, and can be styled in a similar fashion using the ::footnote-marker pseudo-element:

*::footnote-marker {
    font-weight: bold
}

This rule will generate footnote markers with a bold font.

Footnote markers are rendered outside the footnote in the left margin area by default. If the CSS property footnote-style-position has value inside, the marker is rendered as the first inline box inside the footnote. (This property is similar to the list-style-position property that applies to list markers (see Lists).

Styling footnotes

Footnotes are placed within the @footnotes area of the page (see Page regions), which can be styled within @page rules (see @page). Note that if there are no footnotes on a page then the footnotes area will not be displayed on that page at all.

@page {
    @footnotes {
        border-top: solid black thin;
        padding-top: 8pt
    }
}

This rule adds a border and some padding to the top of the footnotes area.

The property footnote-display can be used to choose whether to display footnotes as a block element or an inline element.

A convenient way of styling footnotes is also by means of the float property: several possible values refer to footnotes (see also Floats). An element can be removed from the normal flow of the document by styling it with the float property with the footnote value: it creates a footnote call in the place where the element would be in its natural flow, and moves the element's content to the bottom of the page. The footnote marker is rendered outside the footnote in the left margin area. The value inline-footnote creates a footnote with the marker being the first inline box inside the footnote, just like applying the footnote-style-position property with the value inside.

In a multi-column layout, footnotes can also be rendered at the bottom of each column by using the values prince-column-footnote or prince-column-inline-footnote for the float property.

In some situations it might happen that footnotes do not fit on the page on which the footnote call was placed. It might be desirable to tie the footnote to the same page as the call - the prince-footnote-policy can be of help. The following example instructs Prince to move the line with the footnote call to the next page, in order to keep it on the same page as the footnote itself:

p {
  prince-footnote-policy: keep-with-line;
}

Alternatively, the value keep-with-block moves the entire paragraph to the next page.

Note that this property must be applied to the paragraph in which the footnote occurs, not to the footnote element itself.
